EXP-2 SIMULATION OF VHDL CODE FOR ARITHMETIC FUNCTIONS

AIM:
       To simulate the arithmetic functions of 4-bit adder & subtractor with addition, subtraction and multiplication.

APPARATUS REQUIRED:
       Xilinx V14.7 Software

1. 4-BIT ADDER:
Logic Diagrams:

Programs:

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;

entity adder is
Port (
x: in STD_LOGIC_VECTOR (3 downto 0);
y : in STD_LOGIC_VECTOR (3 downto 0);
cin : in STD_LOGIC;
sum : out STD_LOGIC_VECTOR (3 downto 0);
cout : out STD_LOGIC);
end adder;

architecture Behavioral of adder is

component fulladder

port(
x,y,cin:in std_logic;
sum,cout: out std_logic);
end component;

signal c: std_logic_vector(2 downto 0);

begin
a1:fulladder port map(x(0), y(0), cin, sum(0), c(0));
a2:fulladder port map(x(1), y(1), c(0), sum(1), c(1));
a3:fulladder port map(x(2), y(2), c(1), sum(2), c(2));
a4:fulladder port map(x(3), y(3), c(2), sum(3), cout);
end Behavioral;

library ieee;
use ieee.std_logic_1164.all;

entity fulladder is

port(
x,y,cin:in std_logic;
sum,cout: out std_logic);

end fulladder;

architecture comb of fulladder is

begin
sum <= x xor y xor cin;
cout <= (x and y) or (cin and (x xor y));
end comb;

Simulation Output:

2. 4-BIT SUBTRACTOR:
Logic Diagrams:

Programs:

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;

entity subtraction is

Port (
a: in STD_LOGIC_VECTOR (3 downto 0);
b : in STD_LOGIC_VECTOR (3 downto 0);
cin : in STD_LOGIC;
diff : out STD_LOGIC_VECTOR (3 downto 0);
br : out STD_LOGIC);

end subtraction;

architecture Behavioral of subtraction is

component fullsubtraction
port(
a,b,c:in std_logic;
diff,br: out std_logic);
end component;

signal c: std_logic_vector(2 downto 0);

begin

a1:fullsubtraction port map(a(0), b(0), cin, diff(0), c(0));
a2:fullsubtraction port map(a(1), b(1), c(0), diff(1), c(1));
a3:fullsubtraction port map(a(2), b(2), c(1), diff(2), c(2));
a4:fullsubtraction port map(a(3), b(3), c(2), diff(3), br);

end Behavioral;

library ieee;
use ieee.std_logic_1164.all;

entity fullsubtraction is

port(
a,b,c:in std_logic;
diff,br: out std_logic);
end fullsubtraction;

architecture Behavioral of fullsubtraction is

begin
diff <= a xor b xor c;
br <= ((not a )and b) or ((not a )and c) or (b and c);
end Behavioral;

Simulation Output:

3. ADDITION, SUBTRACTION, MULTIPLICATION:
Programs:

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_ARITH.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;

entity codef is

Port (
a : in STD_LOGIC_VECTOR (3 downto 0);
b : in STD_LOGIC_VECTOR (3 downto 0);
y : out STD_LOGIC_VECTOR (7 downto 0));

end codef;

architecture Behavioral of codef is

begin
y <= a * b;
end Behavioral;

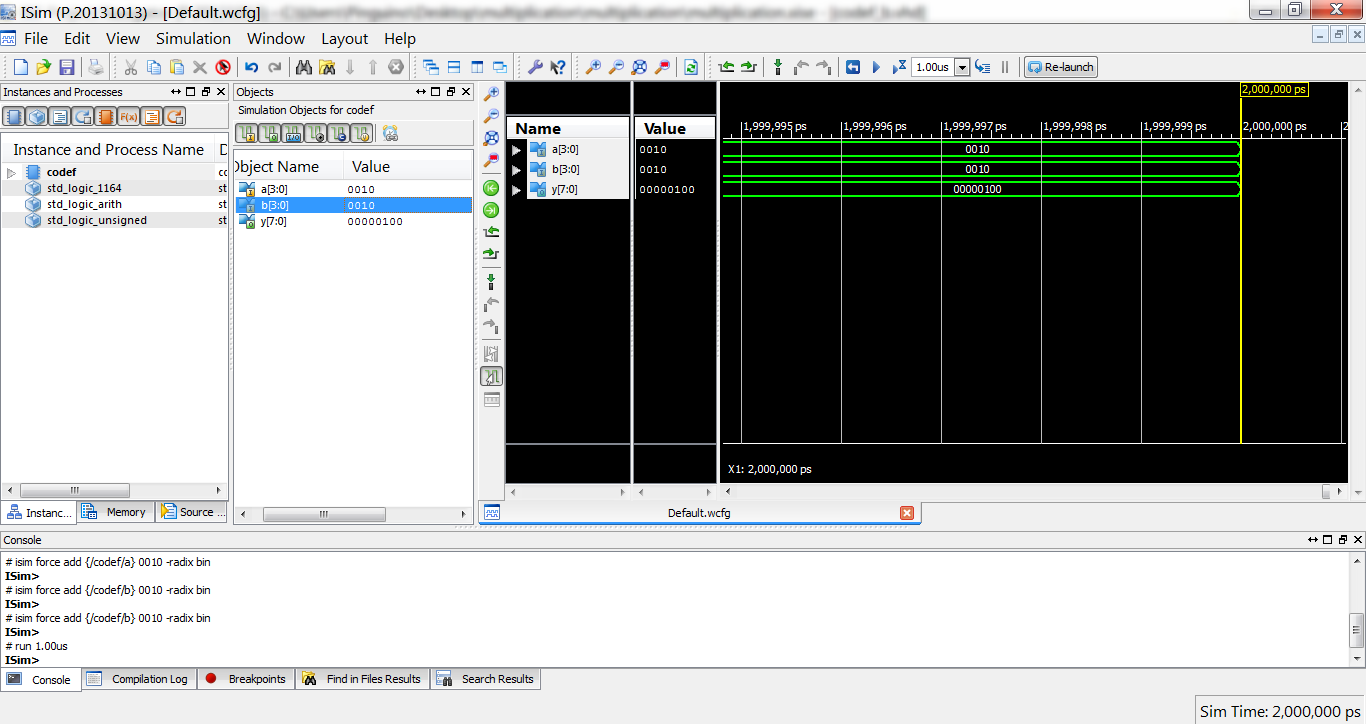

Simulation Output:

FLOW CHART:

PROCEDURES:
Step1: Open xilinx software > go to file > new project > create source file name> select specific folder> next >  select proper project settings> we use spartan 3E trainer kit.

Step2: next > finish > go to project > new source > select VHDL module > create file name> next > select input and output > next > finish> write program > if done write programs > click synthesis > right click> run.

Step3: if completed successfully > go to simulation > click source file > right click > new source > select VHDL test bench > create simulation file name > next > select source file > next > finish.

Step4: select simulation file > Isim simulator > click behavioral check syntax > right click > run > if successfully completed. click simulation behavioral > right click > run > wait few seconds > will open new tap.

Step5: click object name > right click > select force constant >

Step6: set all input value > click Run for  the time specified on the toolbar> check simulation output in this screen

NOTE: if you want image file > click print screen  > open MS paint > cnt +v > save
           if you want PDF file > file > print > select doPDF printer > create pdf file name + quality> ok
